- Sony/MCCD 1409 imaging sensor. Camera Pixel 1280*720P HD.
- Support NTSC/PAL Video system. High grade of waterproofing: IP68.
- High-definition and 170 degree wide viewing angle. like as fisheye.
- Low-light Level Night Vision, 15m visible distance for night.
- Can be used as front or rear-view camera. • Optional distance scale line.
- 6M RCA Video connector. Fit for Android DVD player and Any TFT Car Monitor .
- Fit for any Car model.

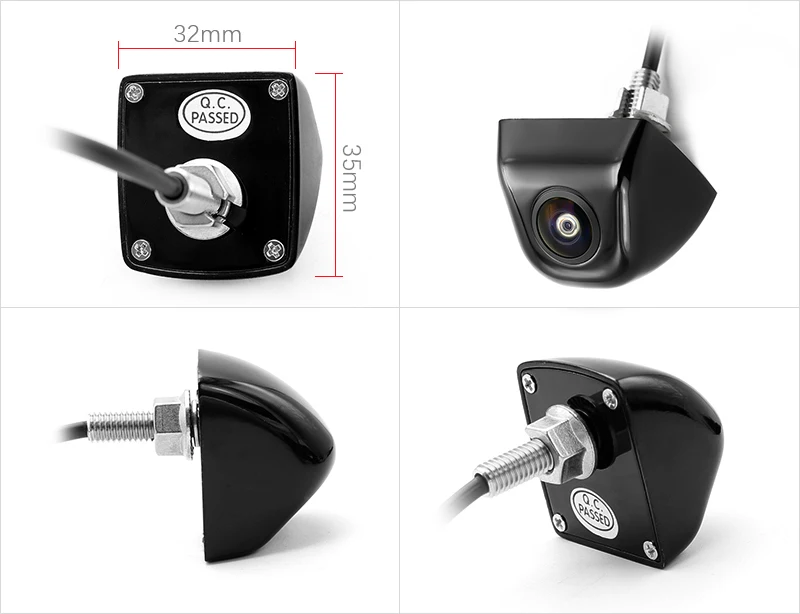

- New body material: High quality stainless steel, aluminium alloy. Anti Scratch. Waterproof.
- If you need a backup camera with distance scale line, do no cut any wires.
- If you need a backup camera without distance scale line, please cut the green wire.
- If you need a front camera with distance scale line, please cut the white wire.
- If you need a front camera without distance scale line, please cut both the green and white wires.

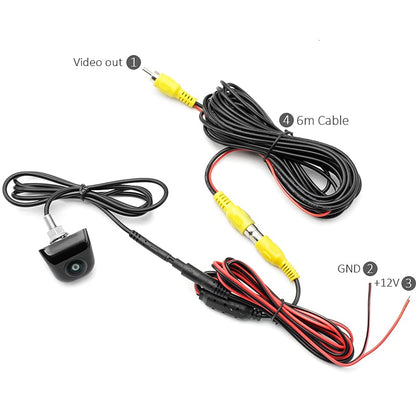

1. The 4 pin to RCA cable is a dedicated cable and cannot be replaced; 6m video cable can be replaced. 2. About (+12V No.3): This red wire cannot be connected to ACC, requires connection of reversing lights.
- Image Sensor: MCCD 1409 TV
- system: NTSC / PAL Option
- TV Line : 1000 TV
- Line Effective Pixels: 720 Pixels. Low-light Level Night Vision , 15m visible distance for night
- . White Balance: Auto Power: DC 12V Fit for Android DVD player and Any TFT Car Monitor.
- 1. Rear view camera
- 2. Package box
- 3. 6m Video cable
- 4. 1m Power cable
- 5. Manual
